Bicycling - Shimano Road Bike Parts Compatibility - 2017

Shimano compatibility charts come in handy for assembling your bicycle, planning purchases, or troubleshooting. We have included their compatibility charts from 2017 here. The biggest changes of the 2017 model year are the improved flagship Dura-Ace 9100 groupset, and the variety of disc brakes and compatible brake levers. The source of these charts is the Shimano global web site.


Contents


Compatibility Chart 2017 - Front


chart color code: Blue items = new for this year. Brown items = no longer in production.



Compatibility Chart 2017 - Rear




Compatibility Chart 2017 - Brakes

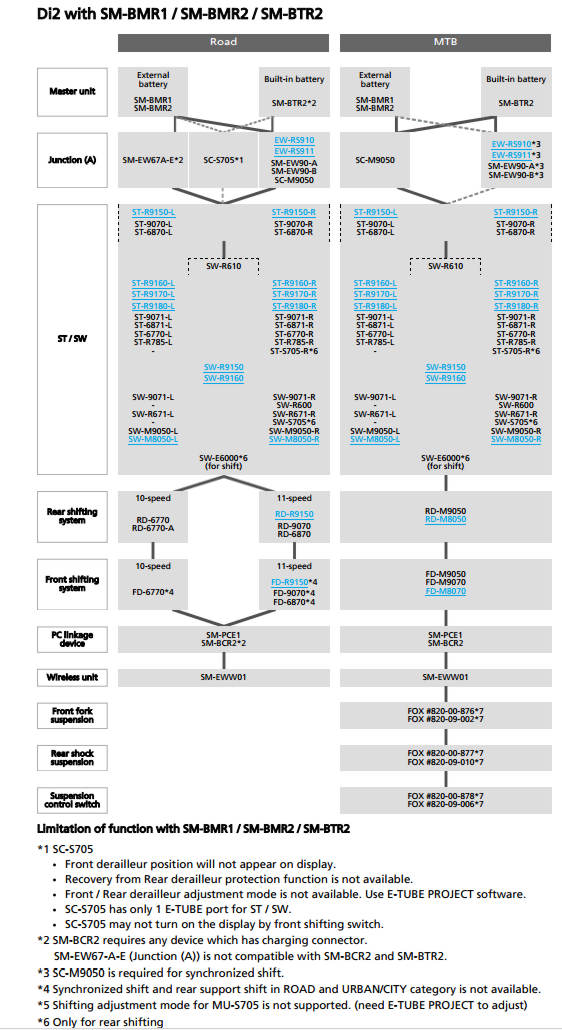

Compatibility Chart 2017 - Di2






Compatibility Chart 2017 - Disc







Release Notes

For 2017, Shimano has released several disc-brake related products, and an all-time greatest Dura Ace groupset (the 9100 series).
